Fast Delivery & No Tax: Local warehouse in Germany,If you need fast transpotation. you can contact our customer service before purchasing. DDP service to your door.
Built-in 16S 100A BMS: The built-in Battery Management System (BMS) protects your battery from Over Charge and Discharge, Over Current, Short Circuiting, as well as Low and High Temperature for increased performance and longer life.
Support Most Brand Inverter: Victron, Goodwe, Growatt, Voltronic, Deye, LXP, Sofar, SRNE, MPPsolar, Solis(Gin long), SMA, Powland, EASUN.etc
5 Year Warranty: LVFU newest Lithium Iron Phosphate Batteries are confidently guaranteed for 5 years! We aim for quality followed up with quality customer service, we are the Best!!!
More Than 6000+ Cycle: Grade A battery cells, compared to lead-acid batteries, our LiFePO4 provides greater energy density and only 1/3 the weight of lead acid batteries, it is a perfect upgrade for any Deep Cycle battery.

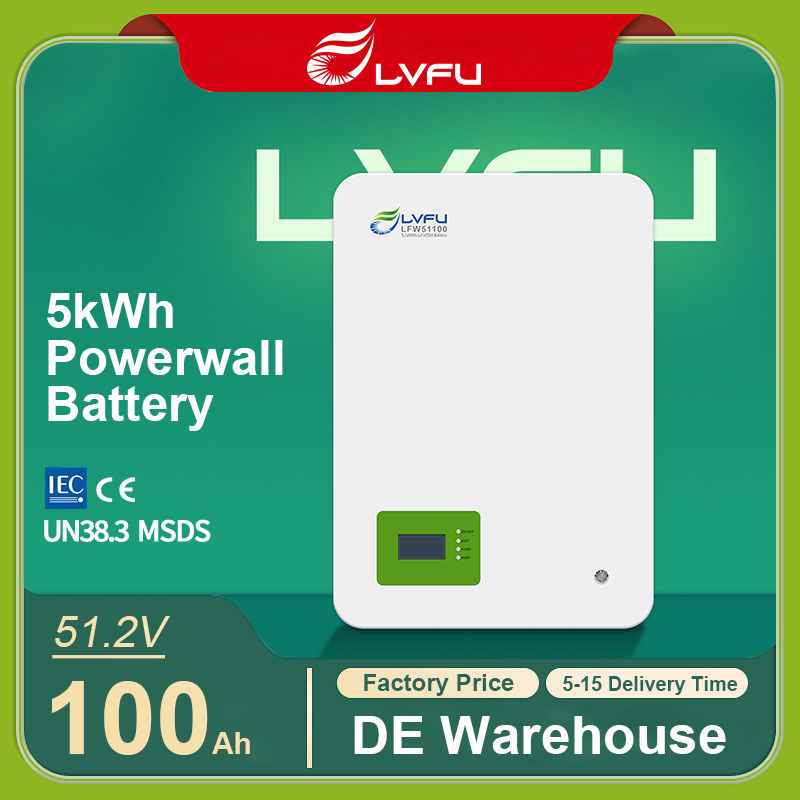

48V 100Ah 5KWh Solar PowerWall Lithium Battery | Wall Mounted Lifepo4 Battery

No reviews
$900.98Price

$5 OFF

Quantity

  • Free Shipping

    Ship from Germany, Delivery time 5-15 working days.

LVFU 48v lithium battery.webp

We DO NOT use recycled battery cells from EV(electric vehicle).
All LVFU batteries come with Brand New Grade A LiFePO4 cells.

LVFU 24V 100Ah 2.5kWh LIFEPO4 BATTERY LFR24100

Rated battery energy: 2.56kWh

Nominal Voltage: 25.6V
Nominal Capacity: 100Ah
Communication Protocol: CAN RS485
Built-in BMS : 8S 50A
Energy: 2560 Wh
Cycle Life: ＞6000 cycles at 0.2C; End of life 80% capacity.
Floating charge voltage: 27V
Max Charging Current: 50A
Max Discharging Current: 100A
Discharge Cut-off Voltage: 23.2V

Packing size: 525*390*240mm

Packaged weight: 41kg

LVFU 48V 100Ah 5kWh LIFEPO4 BATTERY LFW51100

Rated battery energy: 5.12kWh

Nominal Voltage: 51.2V
Nominal Capacity: 100Ah
Communication Protocol: CAN RS485
Built-in BMS : 16S 100A Max 16 Parallel
Energy: 5120 Wh
Cycle Life: ＞6000 cycles at 0.2C; End of life 80% capacity.
Charge Voltage: 44-57.6V
Max Charging Current: 50A
Max Discharging Current: 100A
Discharge Cut-off Voltage: 46.4V

Packing size: 660*483*353mm

Packaged weight: 64.2kg

LVFU 48V 280Ah 15kWh LIFEPO4 BATTERY LFF51280

Rated battery energy: 14.336kWh

Nominal Voltage: 51.2V
Nominal Capacity: 280Ah
Communication Protocol: CAN RS485
Built-in BMS : 16S 200A Max 16 Parallel
Energy: 14336 Wh
Cycle Life: ＞6000 cycles at 0.2C; End of life 80% capacity.
voltage range: 43.2-57.6V
Max Charging Current: 200A
Max Discharging Current: 200A
Discharge Cut-off Voltage: 46.2V

Packing size: 940*610*500mm

Packaged weight: 160kg

24V 48V 100Ah 200Ah 280Ah Lithium Battery For Home
Solar Energy Storage System ESS

LVFU products and projects are spread across more than 30 countries

Match All Hybrid and Off Grid Inverter Brands

Communication with inverters of other brands can also be customized with communication protocol provided.


LVFU Low Voltage LiFePO4 battery 24V 48V 100Ah  200ah 280ah

​

1. The battery uses lithium ferrous phosphate (LiFePO4) material, with good safety performance and a cycle life of 6000-12000 cycles. It supports up to 16 battery stacks in series.

​

2. The battery system adopts a high-performance BMS battery management module, which has multiple protection functions such as overcharge, overdischarge, overcurrent, and temperature. It automatically manages charging and discharging. The monitoring unit automatically measures the charging and discharging current of the battery and performs floating charging and charging management on the battery. Configure centralized monitoring function, and communicate through the remote central monitoring center.

​

3. The external communication interface adopts CAN, RS485. Cover all mainstream protocols and adapt to most mainstream inverters. The self-cooling method is adopted, and the entire system noise is extremely low during operation.

​

4. Without traditional wiring operations, stacking and installation, the power connection between the batteries can be easily completed. Suitable for a variety of indoor scenes.


Factory direct sales, 12V 24V 48V 50Ah 100Ah 200Ah 280Ah 314Ah , OEM/ODM ,welcome to place an order at any time.

​

The development strategy of LVFU is based on strong market development capabilities and technical research and development capabilities, and relies on good investment and financing resources, production resources, and supply chain resources to provide clean energy for underdeveloped power areas, island areas, and areas with high electricity prices around the world, and promote the use of household energy storage systems, industrial and commercial energy storage systems, solar microgrids, and off-grid integrated power systems.


LVFU products and projects are spread across more than 30 countries and regions including the European Union, Southeast Asia, and the Middle East. More than 300,000 sets of off-grid system equipment have been installed and operated, benefiting more than 3 million people.
